Monitoring Setup for Azure AD B2C tenants

I've recently been working on implementing Azure AD B2C from scratch, and wanted to write down some thoughts about how to implement the monitoring for new tenants.

As with any solution, monitoring your Azure AD B2C setup is critical to ensure that it is performing as expected and to identify and troubleshoot any issues that may arise.

What's peculiar with Azure AD B2C is that it creates a new, stripped down version of a normal Azure AD tenant, adding the B2C capabilities on top of that. The only visible thing in the non-B2C tenant (let's call this the "main" tenant from now on) is a B2C resource that handles billing. This tenant cannot have a subscription or any other Azure resources tied to it, so the main question is, how do you actually store your audit, sign-in, and other logs?

It's arguable whether you should spend too much time on automation here. Tenants get created very seldom, and a couple of the steps cannot be done with service principals.

Some things to note before we start:

Azure Tenants cannot be created by service principals
Any user that creates a tenant will have global admins to the B2C tenant
For automation, you need two service principals, one for the main tenant, and another for the B2C tenant. This can be replaced by a single human user
User setting up monitoring needs to be able to configure diagnostics settings of the B2C tenant, as well as have owner-like permissions for a subscription in the main tenant
The diagnostics settings cannot be set up by service principals, at least via terraform

Setup steps

I'm assuming you already have a Azure AD and Azure AD B2C tenants created.

Create a Log Analytics and Application Insights resources in the main tenant
(Optional) Add monitoring workbooks to the workspace
Create a user group in the B2C tenant, add the users that will configure diagnostics settings
Create a Azure Lighthouse registration definition and assignments against the resource group with log analytics
Configure diagnostics settings in B2C

As you can see, we need to use Azure Lighthouse to delegate the Log Analytics resources to the B2C tenant, so the Diagnostics configuration can be done.

Let's go through these steps in more detail.

Create logging resources

Nothing too special here. We're just creating the resources via Terraform or Bicep. Log analytics is needed for the diagnostics settings, whereas Application Insights is often used for B2C Custom Policies events.


resource "azurerm_resource_group" "rg" {
  name     = "myrg"
  location = var.location

  tags = var.tags
}

resource "azurerm_log_analytics_workspace" "loganalytics" {
  name                = "mylaw"
  location            = azurerm_resource_group.rg.location
  resource_group_name = azurerm_resource_group.rg.name
  retention_in_days   = 60
  sku                 = "PerGB2018"

  tags = var.tags
}

resource "azurerm_application_insights" "appinsights" {
  name                = "myappinsights"
  location            = azurerm_resource_group.rg.location
  resource_group_name = azurerm_resource_group.rg.name
  application_type    = "web"

  workspace_id = azurerm_log_analytics_workspace.loganalytics.id

  tags = var.tags
}

(Optional) Add monitoring workbooks to the workspace

You might want to get some reasonable dashboards for your logs. Thankfully Microsoft has provided some pretty good ones we can use almost straight out the box.

I've copied the workbooks .json files from the workbooks folder of the repo to my own repo. Then in Terraform, we can create the workbooks like this. Note that the Abandon Journeys workbook does depend on you passing the name of the App Insights in.

Some examples for Terraform:


resource "random_uuid" "abandon_journeys" {
}
resource "azurerm_application_insights_workbook" "abandon_journeys" {
  name                = random_uuid.abandon_journeys.result
  location            = azurerm_resource_group.rg.location
  resource_group_name = azurerm_resource_group.rg.name
  display_name        = "Abandon Journeys Report"
  source_id           = lower(azurerm_log_analytics_workspace.loganalytics.id)
  category            = "workbook"
  data_json           = jsonencode(templatefile("${path.module}/books/abandon_journeys.json", { app_insights_name = azurerm_application_insights.appinsights.name }))
}


resource "random_uuid" "conditional_access_report" {
}
resource "azurerm_application_insights_workbook" "conditional_access" {
  name                = random_uuid.conditional_access.result
  location            = azurerm_resource_group.rg.location
  resource_group_name = azurerm_resource_group.rg.name
  display_name        = "Condtional Access Report"
  source_id           = lower(azurerm_log_analytics_workspace.loganalytics.id)
  category            = "workbook"
  data_json           = jsonencode(file("${path.module}/books/conditional_access_report.json"))
}

Create a user group in the B2C tenant

Normal security group here, with users added in.

If you're using a service principal for this, it should have the following MS Graph permissions:

Group.ReadWrite.All
User.Read.All

Here's a Terraform example. Replace or fetch the user objectIds:


resource "azuread_group" "logging_administrators" {
  display_name     = "B2C Logging Administrators"
  owners           = ["my-user objectid"]
  security_enabled = true

  members = ["my-user objectid"]
}

Create a Azure Lighthouse registration definition and assignments

Azure Lighthouse sets up the delegation for the user group we just created to manage the resource group with the logging resources.

This part requires that the user or principal deploying the code has write permissions to roleAssignments, so basically Owner permissions on the subscription level. I've created a tiny bit more restricted role, but as the role has the permission to give itself more permissions, this should still be treated the same as Owner. Main benefit here is just to make it harder to accidentally make mistakes.

Here's the JSON representation for the role:

{
	"id": "/subscriptions/someguid/providers/Microsoft.Authorization/roleDefinitions/someguid",
	"properties": {
    "roleName": "Lighthouse Delegation Creator",
    "description": "Is able to create lighthouse registrationDefinitions and registrationAssignments",
    "assignableScopes": ["/subscriptions/mysubguid"],
    "permissions": [
      {
        "actions": [
          "Microsoft.ManagedServices/registrationDefinitions/read",
          "Microsoft.ManagedServices/registrationDefinitions/write",
          "Microsoft.ManagedServices/registrationDefinitions/delete",
          "Microsoft.ManagedServices/registrationAssignments/read",
          "Microsoft.ManagedServices/registrationAssignments/write",
          "Microsoft.ManagedServices/registrationAssignments/delete",
          "Microsoft.ManagedServices/operationStatuses/read",
          "Microsoft.ManagedServices/operations/read",
          "Microsoft.Authorization/roleAssignments/read",
          "Microsoft.Authorization/roleAssignments/write",
          "Microsoft.Authorization/roleAssignments/delete"
        ],
        "notActions": [],
        "dataActions": [],
        "notDataActions": []
      }
		]
	}
}

Then, onto the Lighthouse config. First we need to create a "Lighthouse Registration Definition" which specifies:

What is the tenant that manages the things we assign this definition to
What role will be given to the authorized managing users
Who in that tenant has the authorization

resource "random_uuid" "offer_name" {}

resource "azapi_resource" "lighthouse_offer" {
  type      = "Microsoft.ManagedServices/registrationDefinitions@2022-10-01"
  name      = random_uuid.offer_name.result
  parent_id = "/subscriptions/${var.subscription_id}"
  body = jsonencode({
    properties = {
      authorizations = [
        {
          principalId            = "objectIdOfB2CGroup"
          principalIdDisplayName = "DisplayNameOfB2CGroup"
          roleDefinitionId       = "b24988ac-6180-42a0-ab88-20f7382dd24c" # Contributor
        }
      ]
      registrationDefinitionName = "myOffer"
      description                = "Example offer for B2C"
      managedByTenantId          = "tenantID of the B2C tenant"
    }
  })

  response_export_values = [
    "id"
  ]
}

Next, we need to assign the definition to our resource group in the main tenant. Basically saying that this will be managed by the B2C tenant AD group.

resource "azapi_resource" "logging_delegation" {
  type      = "Microsoft.ManagedServices/registrationAssignments@2022-10-01"
  name      = random_uuid.offer_name.result
  parent_id = "logging resource group resource ID"
  body = jsonencode({
    properties = {
      registrationDefinitionId = jsondecode(azapi_resource.lighthouse_offer.output).id
    }
  })
}

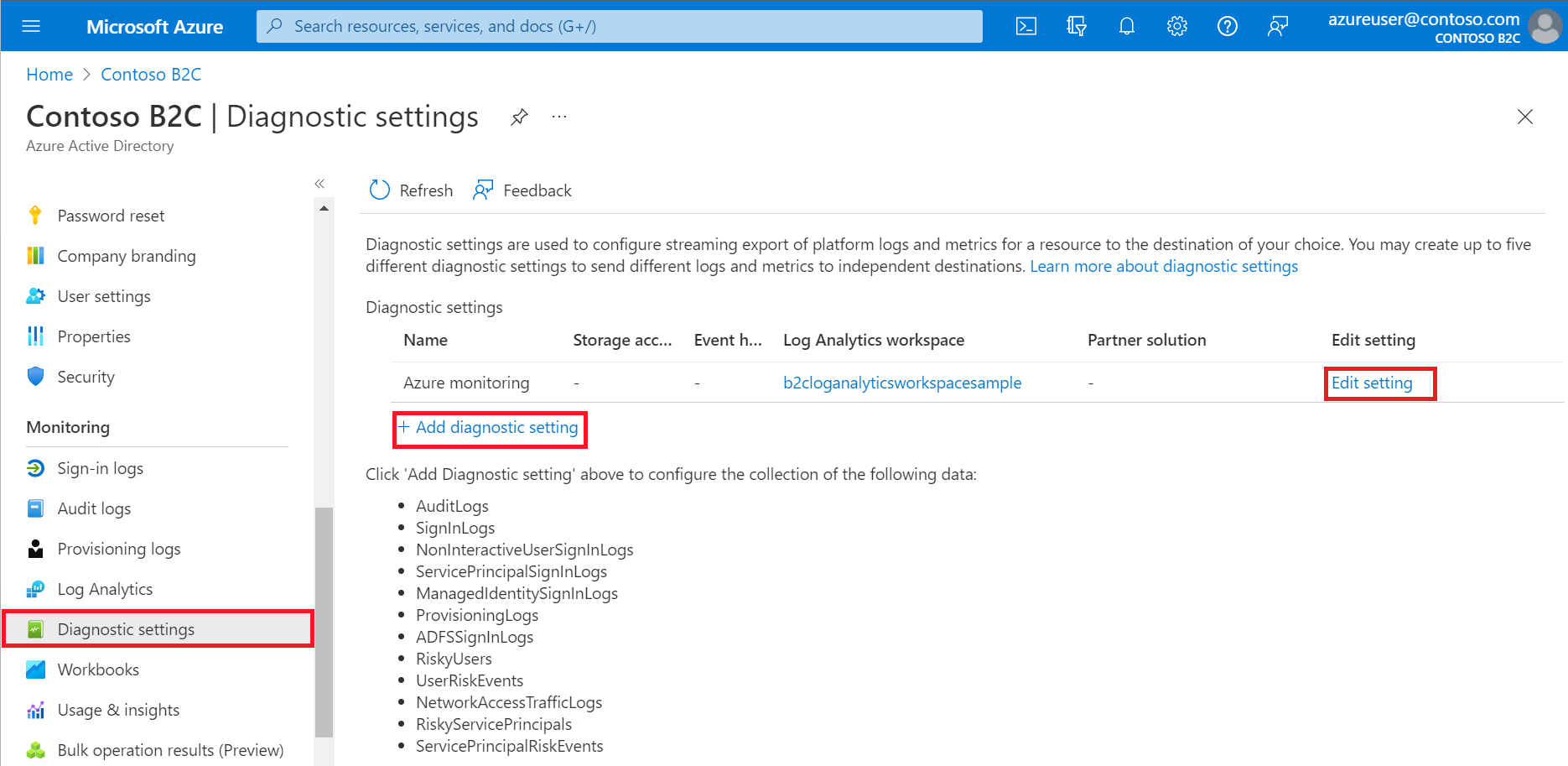

Configure diagnostics settings in B2C

Last, we just need to set up the diagnostics settings. This step apparently cannot be done by service principal authentication (at least in Terraform), so a user needs to do this part. You might need to wait a few minutes for the previous steps delegation to start working.

You can either create a Terraform module for this with this resource type, or just configure these manually.

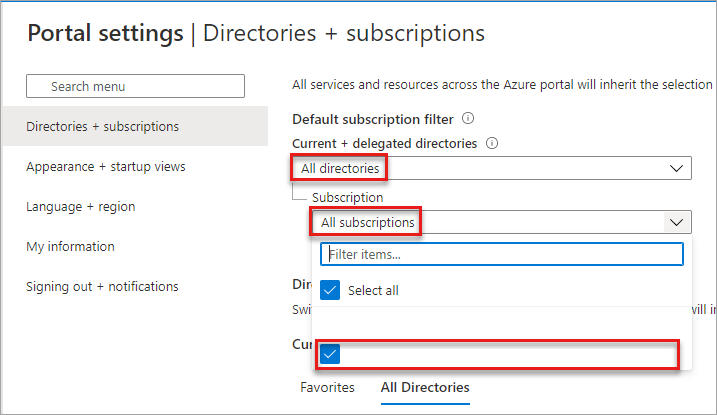

If you're doing the manual config, first set the delegated subscription in the Default Subscription filter under the Directories + Subscriptions menu of the portal settings.
